SVM-X56 4G modem

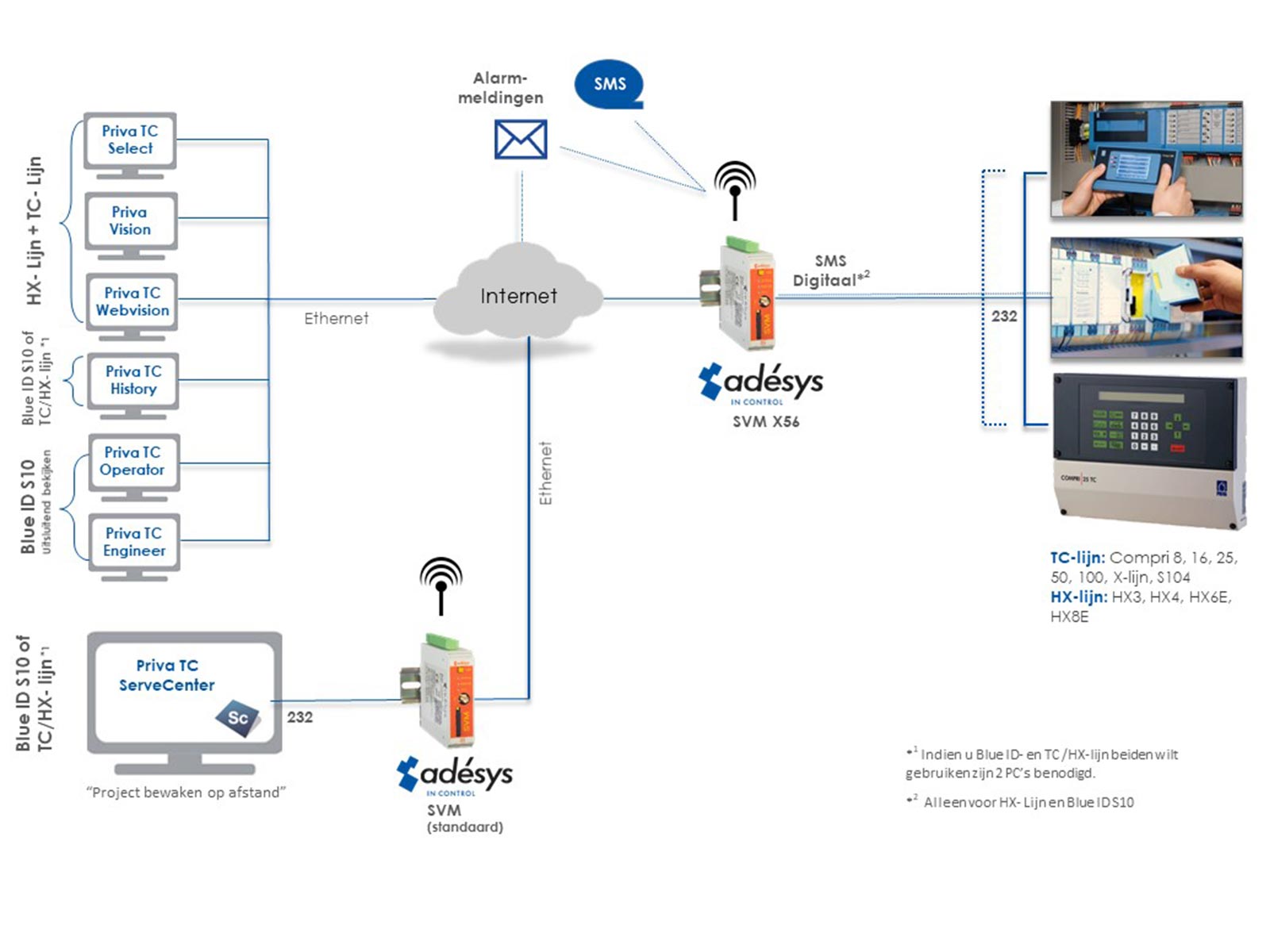

Modems are deployed in the industry to connect local technical systems with a central process computer. This process computer operates and reads out those local processes. The SVM-X56 4G modem provides access to your Priva system via internet; proven reliable and employable anywhere in the world. Only one easy configuration change to your Priva operating and engineering software and the connection can be initiated using 'Steady Connect' for an extremely stable connection.

It is now possible to establish a connection with your Priva building management system via mobile or fixed internet using the same modem. When you use an Ethernet connection, the familiar functionalities remain available and you are not confronted with additional subscription charges. If an Ethernet connection is not possible or desirable, you can make use of the wireless 4G network.

The benefits

  1. Remote access to Priva building management systems via 4G and/or fixed Ethernet (network redundancy)
  2. Combined 4G internet modem and contact controlled SMS/email alarm dialler
  3. ‘Steady Connect’ for extremely stable connections
  4. Power failure reporting via emergency power supply

SVM-X56 4G modem

.

This product is used in

Testimonials: the floor is up to the customer

"A modern technology with long-term support that is user friendly, widely deployable and secure."

Willem Mauritz, Suez Site Supervisor

Product Features

 icon-safe-and-reliable Safe and reliable

  1. Combined 4G internet modem and contact controlled SMS/email alarm dialler
  2. ‘Steady Connect’ for extremely stable connections
  3. Reports a power failure in your process due to Supercap built-in emergency power supply (charged after a few minutes)

icon-user-friendly User-friendly

  1. Remote access to Priva building management systems via 4G and/or fixed Ethernet (network redundancy)
  2. Plug & Play solutions for easily configuration

icon-alerting Alert functions

  1. Alert types:
    1. Email and/or text message, sent directly from alarm dialler with 'digital sms' option
    2. Report to TC ServeCenter
  2. Number of call opportunities: 3 call lists with 8 call possibilities per call list, maximum of 20 digits per call number

icon-system-properties-and-operating-conditions System properties and operating conditions

  1. Input options: 2 or 8 digital inputs (dependent on SVM model)

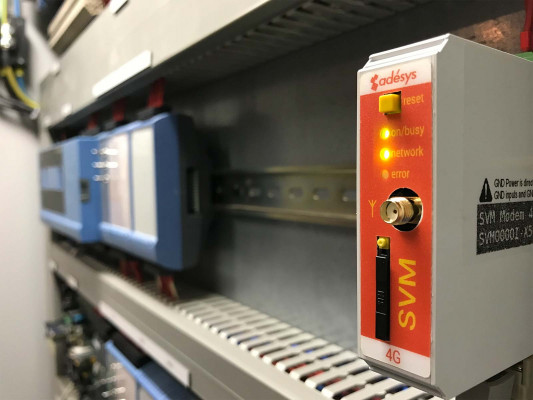

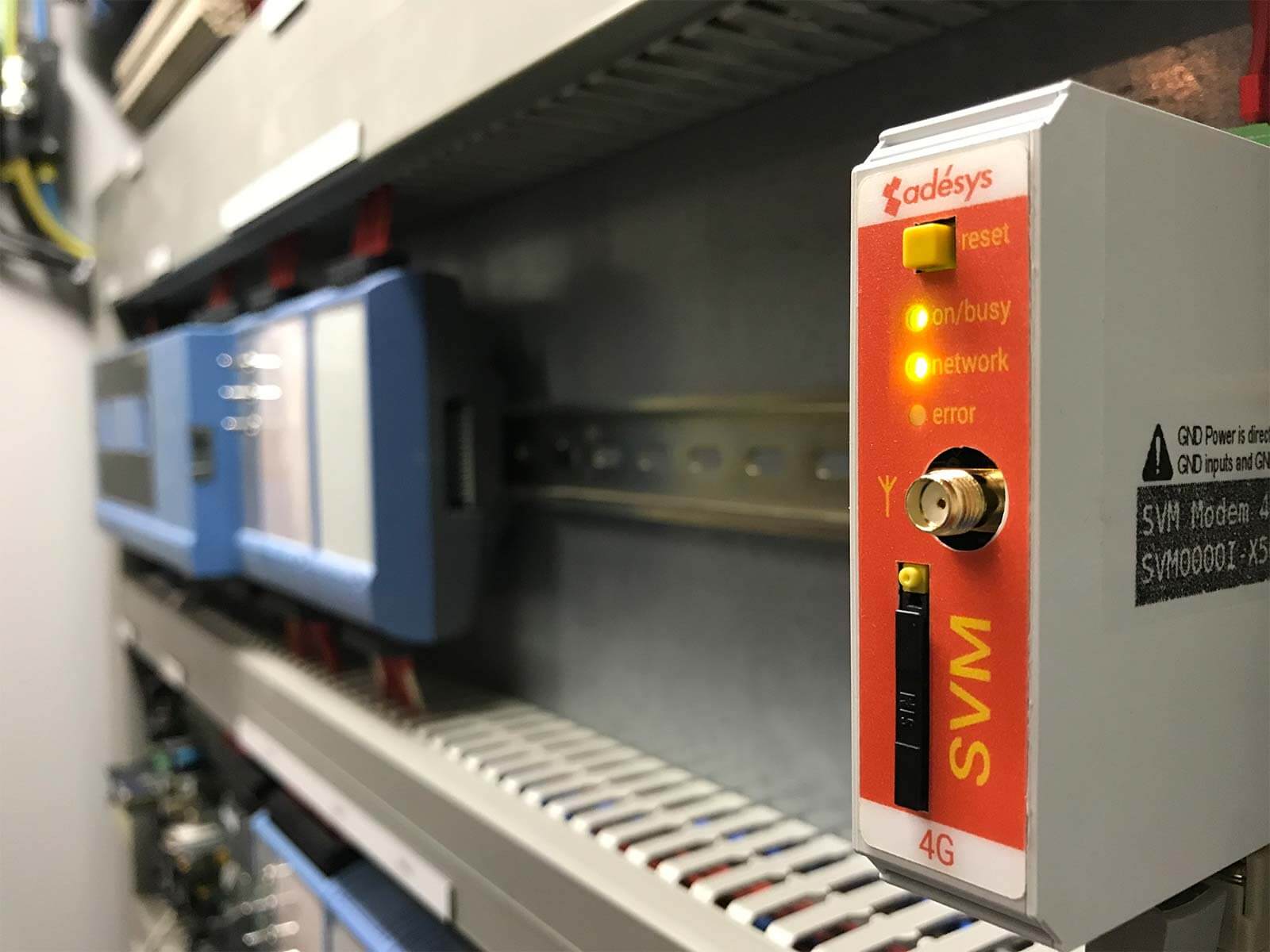

  2. DIN-rail (TS35) enclosure, dimensions 23 x 95 x 102mm (W x H x D)
  3. Operating temperature: -20°C ... +50°C
  4. Supply voltage: 15 - 35VDC / max 8.5W; 20 - 30VAC / max 18VA

Downloads

Safe and reliable connection to your Priva building management system

SMS and email alarms

With the SVM-X56 4G you can send a SMS alarm or an email alarm if you have a SIM card. Even if you do not use a SIM card, it is possible to send an alarm via email message via the Ethernet connection.

Safe and reliable

All unused ports of the SVM-X56 4G are closed by the firewall by default. Only the port that is required for communication with the Priva software is open. In addition, you can use a whitelist.

LTE-M: 4G for Machine-2-Machine

This SVM-X56 4G uses the LTE-M (in full: LTE Cat-M1) band of the 4G network especially for Internet of Things (IoT) applications. In comparison with other solutions, LTE-M has a number of strong advantages:

  1. Very good coverage including in buildings
  2. Supports texting by SMS
  3. High bandwidth for sending and receiving data
  4. Limited delay between sending and receiving data (latency)

Select the right SIM with fixed IP

Selecting the right SIM is very important to ensure that our equipment operates correctly and safely. A non-activated SIM card from Wireless Logic Benelux (SIMPoint) is supplied by delivery. Wireless Logic Benelux (SIMPoint) is specialized in M2M applications and their SIM card has proven successfully:

  1. 4G connection with different SMS bundles
  2. Device automatically switches to 2G in case of failure of the 4G network
  3. Easy online activation without having to search for a suitable LTE Cat-M1 provider

It is up to you whether you use this SIM card. When you activate the sim, you enter into a provider agreement for at least one year with Wireless Logic Benelux (and not with Adésys). If you want to receive alerts via text messages, we recommend to add an SMS bundle to your subscription. For an overview of the costs, please refer to the "Quickstart activation SIM card" (see "downloads" on this page).

If you do not use the supplied SIM card, select a 4G SIM of a provider that supports the LTE Cat-M1 band. Otherwise you could use a 2G SIM card.

Plug & Play: configuration easily arranged

We want to make the installation process as simple as possible so your can reach you goal quickly: access to your Priva installation via fixed or mobile internet. Plug & Play solutions have therefore been developed for the SVM-X56 4G for every device. This simplicity saves you a lot of time and money. Use the free configuration files for this (see service/downloads).

You can easily adjust other settings of the SVM-X56 4G with a PC or laptop. Use the free SV-prog software for this (see service/downloads). SV-prog gives you a clear overview of the configuration options.

Request quotation SVM-X56 4G modem/sms alarm dialler

It is only possible for companies based in the Netherlands to purchase our products online. You can request an online quote.

If you want to use diallers from the SV-product line at several locations at once on a project basis, please contact our sales department. They will be happy to prepare a customised offer for you.

This SVM-X56 4G uses the LTE-M (in full: LTE Cat-M1) band of the 4G network especially for Internet of Things (IoT) applications. A non-activated SIM card from Wireless Logic Benelux (SIMPoint) is supplied with the delivery. It is up to you whether you use this SIM card. If you do not use the supplied SIM card, choose a 4G SIM from a provider that supports the LTE Cat-M1 band.

Article number Description Price
SVM0000-I-X56 4G Modem Priva BMS without contact inputs € 545,00
SVM2000-I-X56 4G Modem Priva BMS with 2 contact inputs € 635,00
SVM8000-I-X56 4G Modem Priva BMS with 8 contact inputs € 718,00
SVM0000-I 4G Modem Priva TC ServeCenter € 402,00
