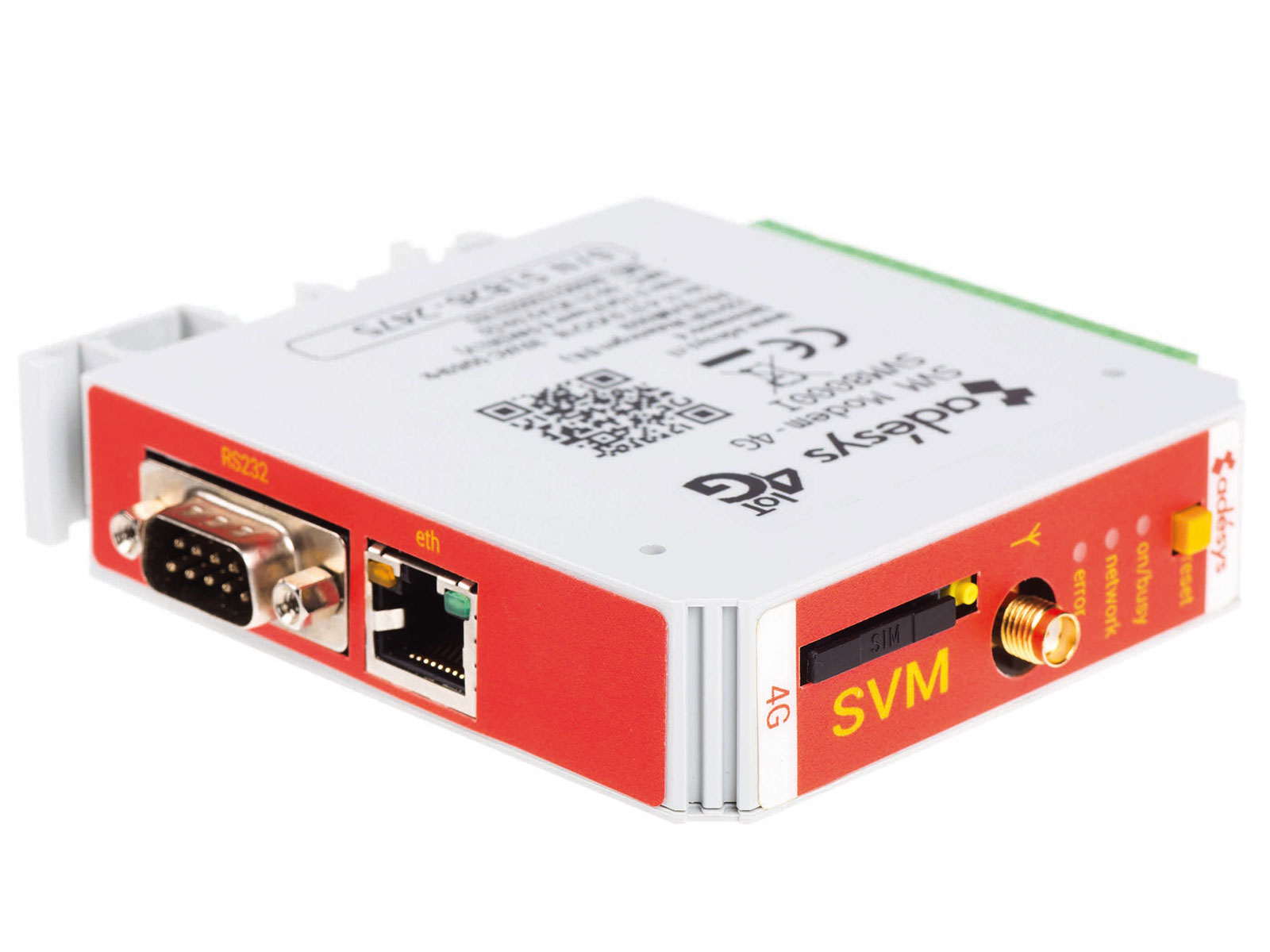

SVM 4G modem
Modems are deployed in the industry to connect local technical systems with a central process computer. This process computer operates and reads out those local processes. You will always be connected to your applications in the field via the SVM 4G modem. The SVM’s unique ‘auto log on’ concept means that the often complex 4G connection technology is simplified to the level of standard modem technology.
The benefits
- Ability to control and monitor your technical systems
- Combined 4G internet modem and SMS/E-mail alarm dialler
- ‘Steady Connect’ for extremely stable connections
- Connection with SCADA via 4G and/or fixed Ethernet (double certainty)
- Power failure reporting via emergency power supply
This product is used in
Product Features
Safe and reliable
- Connected to applications in the fiels
- ‘Steady Connect’ for extremely stable connections
- Connection with SCADA via 4G and/or fixed Ethernet (network redundancy)
- Reports a power failure in your process due to Supercap built-in emergency power supply (charged after a few minutes)
User-friendly
- Ability to control and monitor your technical systems
- Combined 4G internet modem and contact controlled SMS/Email alarm dialler
Alert functions
- Alert types:
- text message (SMS) to server
- IP message to server
- Number of call opportunities: 3 call lists with 8 call possibilities per list, maximum of 20 digits per call number
System properties and operating conditions
- Input options: 2 or 8 universal inputs (dependent on SVM model)

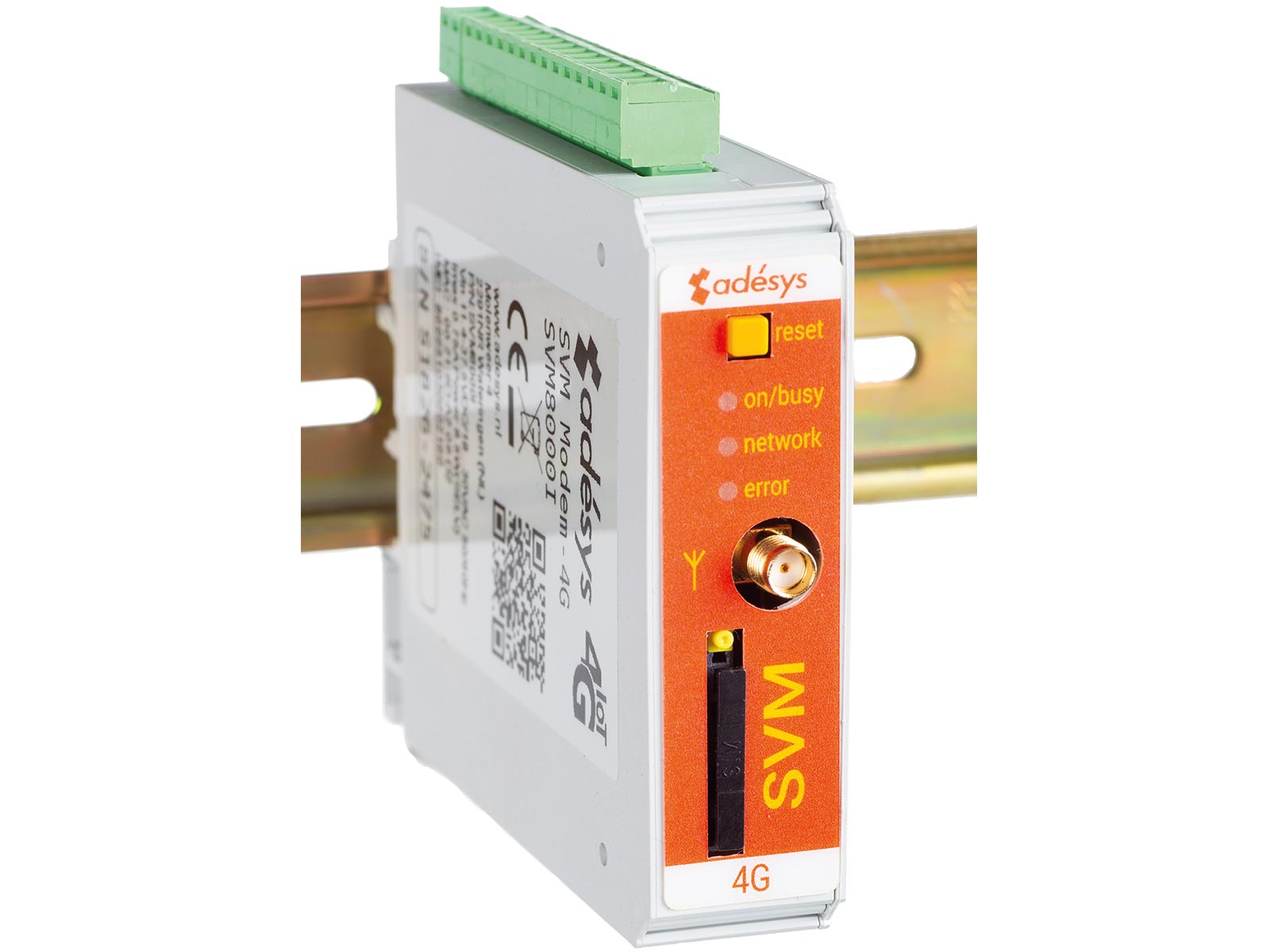

- DIN-rail (TS35) enclosure, dimensions 23 x 95 x 102mm (W x H x D)
- Operating temperature: -20°C ... +50°C
- Supply voltage: 15 - 35VDC / max 8.5W; 20 - 30VAC / max 18VA
Downloads
-
Brochure SVM 4G modem (web version) (PDF, 423.00 KB)
-
Quickstart SV-productline (web version) (PDF, 1.51 MB)
-
Quickstart activation SIM card (web version) (PDF, 643.28 KB)
-
Manual SVM 4G modem (PDF, 1.26 MB)
-
Overview SV-product line (PDF, 480.91 KB)
LTE-M: 4G for Machine-2-Machine
This SVM 4G uses the LTE-M (in full: LTE Cat-M1) band of the 4G network especially for Internet of Things (IoT) applications. In comparison with other solutions, LTE-M has a number of strong advantages:
- Very good coverage including in buildings
- Supports texting by SMS
- High bandwidth for sending and receiving data
- Limited delay between sending and receiving data (latency)
Select the right SIM
Selecting the right SIM is very important to ensure that our equipment operates correctly and safely. A non-activated SIM card from Wireless Logic Benelux (SIMPoint) is supplied by delivery. Wireless Logic Benelux (SIMPoint) is specialized in M2M applications and their SIM card has proven successfully:
- 4G connection with different SMS bundles
- Device automatically switches to 2G in case of failure of the 4G network
- Easy online activation without having to search for a suitable LTE Cat-M1 provider
It is up to you whether you use this SIM card. When you activate the sim, you enter into a provider agreement for at least one year with Wireless Logic Benelux (and not with Adésys). If you want to receive alerts via text messages, we recommend to add an SMS bundle to your subscription. For an overview of the costs, please refer to the "Quickstart activation SIM card" (see "downloads" on this page).
If you do not use the supplied SIM card, select a 4G SIM of a provider that supports the LTE Cat-M1 band. Otherwise you could use a 2G SIM card.
Easy configuration and remote control
Configuration program SV-prog
You can easily configure the SVM alarm dialler using a PC or laptop. Use the free SV-prog software for this (see on page service/downloads). SV-prog gives you a clear overview of the configuration options.
Link operating systems such as PLCs to SCADA
The SVM is the right product for simply changing existing dialled modem connections to 4G and/or Ethernet. You do
not need to adjust the PLC because the SVM processes existing modem commands and builds up a stable internet
connection. Once the modem has been connected, it will read in the data from the PLC via the RS232 or UTP port and it will pass on the data to a SCADA application via the 4G network and/or fixed Ethernet. By using both connections, double certainty is created.
If you connect any alarm contacts that are present to the SVM inputs, it will also be an alarm dialler with SMS alerting.
Request quotation SVM 4G modem/SMS alarm dialler
It is only possible for companies based in the Netherlands to purchase our products online. You can request an online quote.
If you want to use diallers from the SV-product line at several locations at once on a project basis, please contact our sales department. They will be happy to prepare a customised offer for you.
This SVM 4G uses the LTE-M (in full: LTE Cat-M1) band of the 4G network especially for Internet of Things (IoT) applications. A non-activated SIM card from Wireless Logic Benelux (SIMPoint) is supplied with the delivery. It is up to you whether you use this SIM card. If you do not use the supplied SIM card, choose a 4G SIM from a provider that supports the LTE Cat-M1 band.
| Article number | Description | Price | |
|---|---|---|---|
| SVM0000-I | 4G Modem | € 402,00 |
|
| SVM2000-I | 4G Modem with 2 contact inputs | € 494,00 |
|
| SVM8000-I | 4G Modem with 8 contact inputs | € 579,00 |
|
