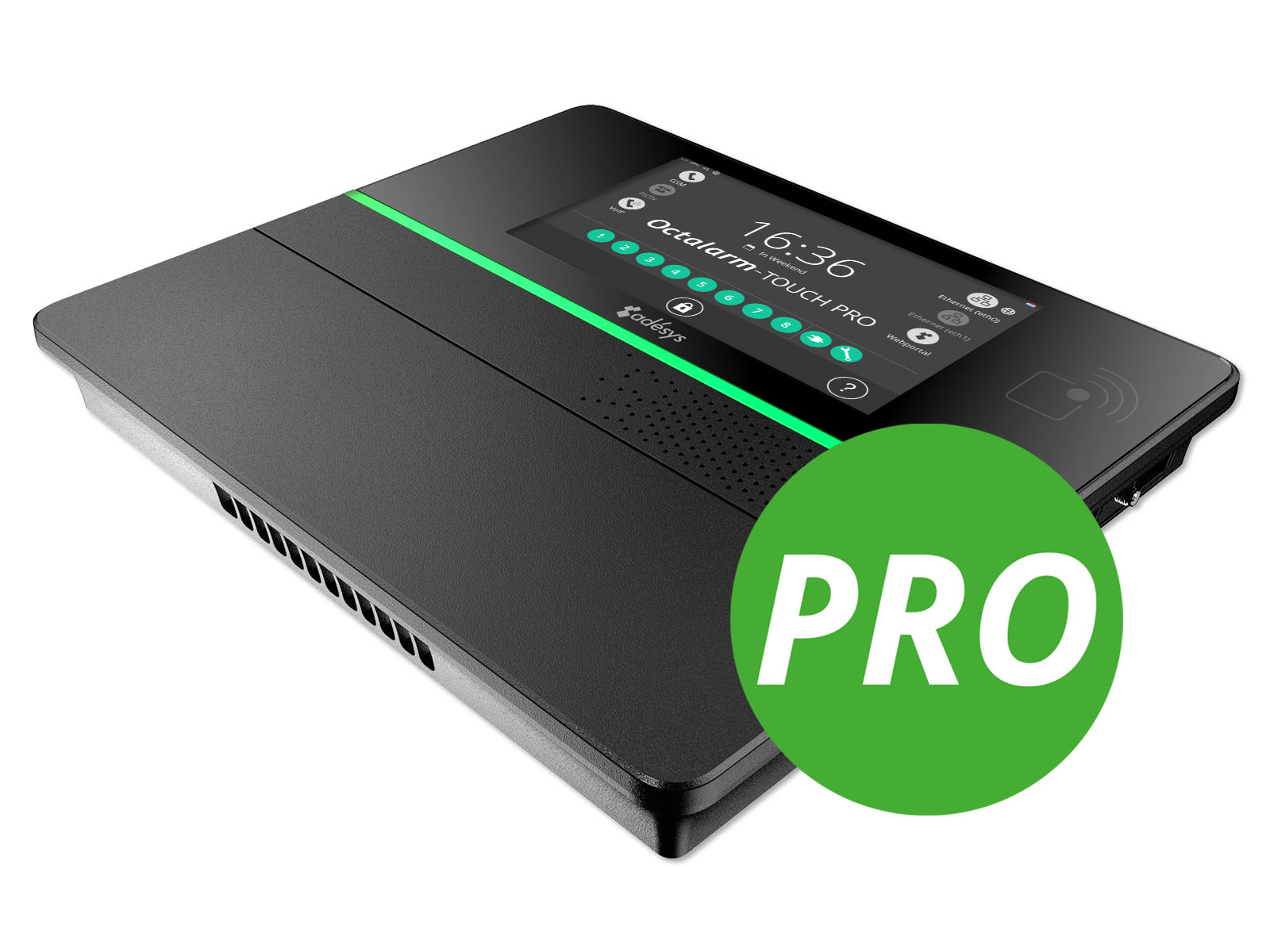

Octalarm-Touch Pro

The Octalarm-Touch Pro is an alarm dialler for technical systems that require separate network interfaces. The additional Ethernet port allows the dialler to be securely connected to both a technical network and a public or corporate network.

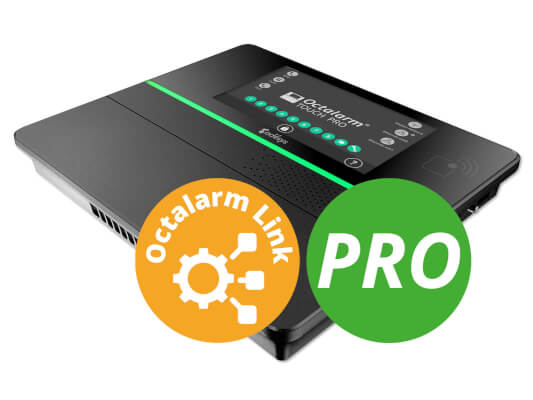

In addition, the Octalarm-Touch Pro is expandable with Octalarm Link (JSON REST API): an additional licence to report large quantities of alarms via network-controlled alarms. This includes linking feed and climate computers, SCADA systems or any other process computer where monitoring is important.

The benefits

  1. Developed with and thus recommended by insurers
  2. Second network interface for separate technical network
  3. Suitable for network-controlled alarms by extending with 'Octalarm Link' (JSON REST API)

Download product leaflet Octalarm-Touch Pro

Octalarm-Touch Pro

Testimonials: the floor is up to the customer

"After testing the Octalarm-Touch Pro, we soon knew that we wanted to continue with it."

Bert Super, Senior Designer/Project Leader Drinkwaterbedrijf WMD

Product Features

icon-safe-and-reliable Safe and reliable

Specific Octalarm-Touch Pro

  1. Second network interface for separate technical network

Octalarm-Touch Pro & Octalarm-Touch

  1. Three parallel connections for 3 double certainty (redundancy)
    1. Analogue telephone (PSTN) lines
    2. Fixed internet via VPN
    3. Wireless 4G connection with VPN
  2. Secure connections with OpenVPN principle
  3. Built-in emergency power supply (LiFePO4 battery) to alert power failure

icon-user-friendly User-friendly

Octalarm-Touch Pro & Octalarm-Touch

  1. Expandable with the duty schedule module: additional licence for setting alternating fault shifts for a longer period
  2. Advanced speech synthesis
  3. Octalarm Connect: subscription for quick start up and to send alerts via mobile network and/or VoIP
  4. Remote setup and management with app, Octalarm portal or web browser on local company network (with IP address of the alarm dialler)
  5. Adesys Alarm app: free alarm management app for alarm notifications, alarm acceptance, management and configuration of detectors and access to the status of critical processes directly on your smartphone
  6. Full logbook with audit trail and easy filter functions

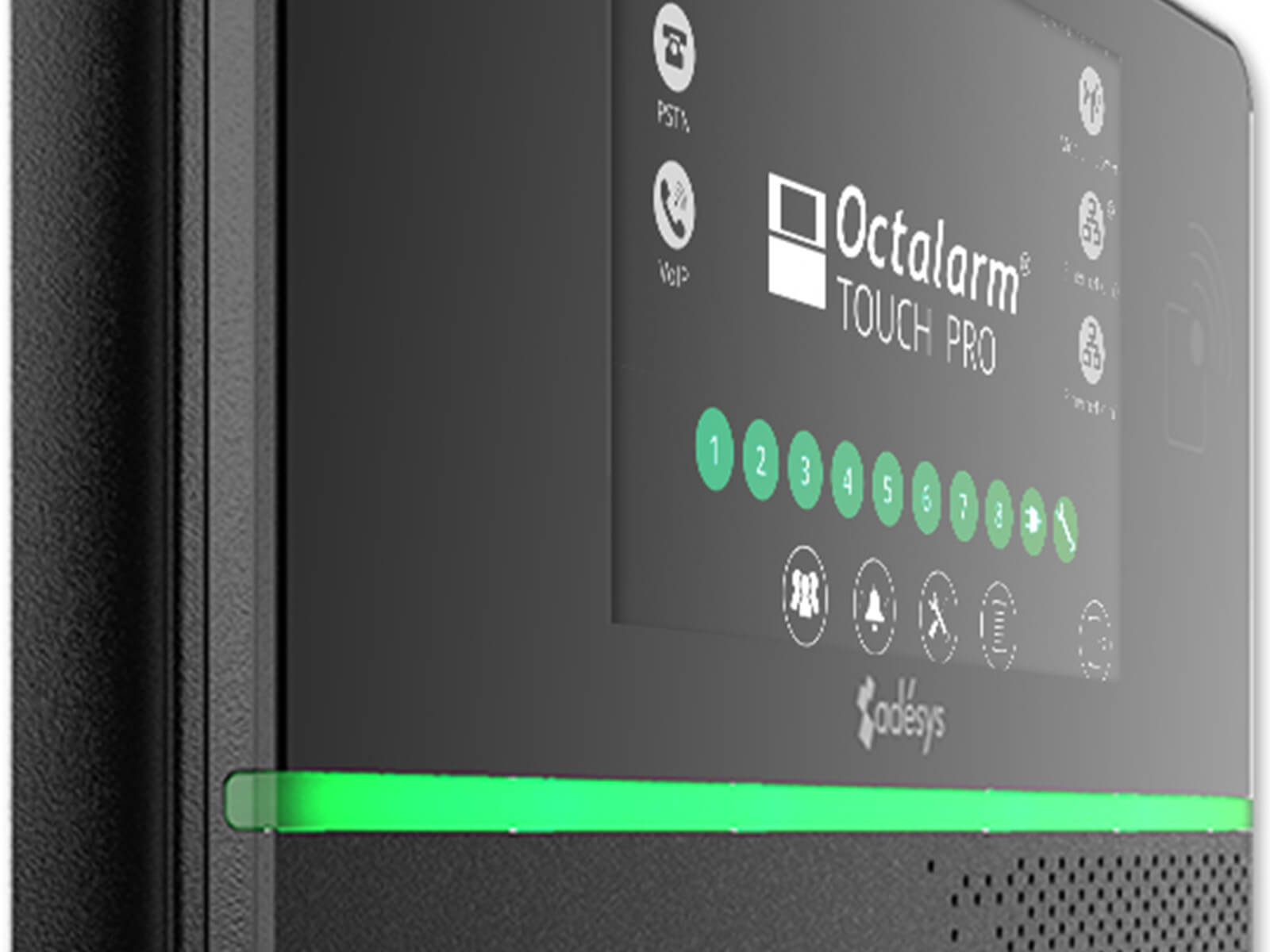

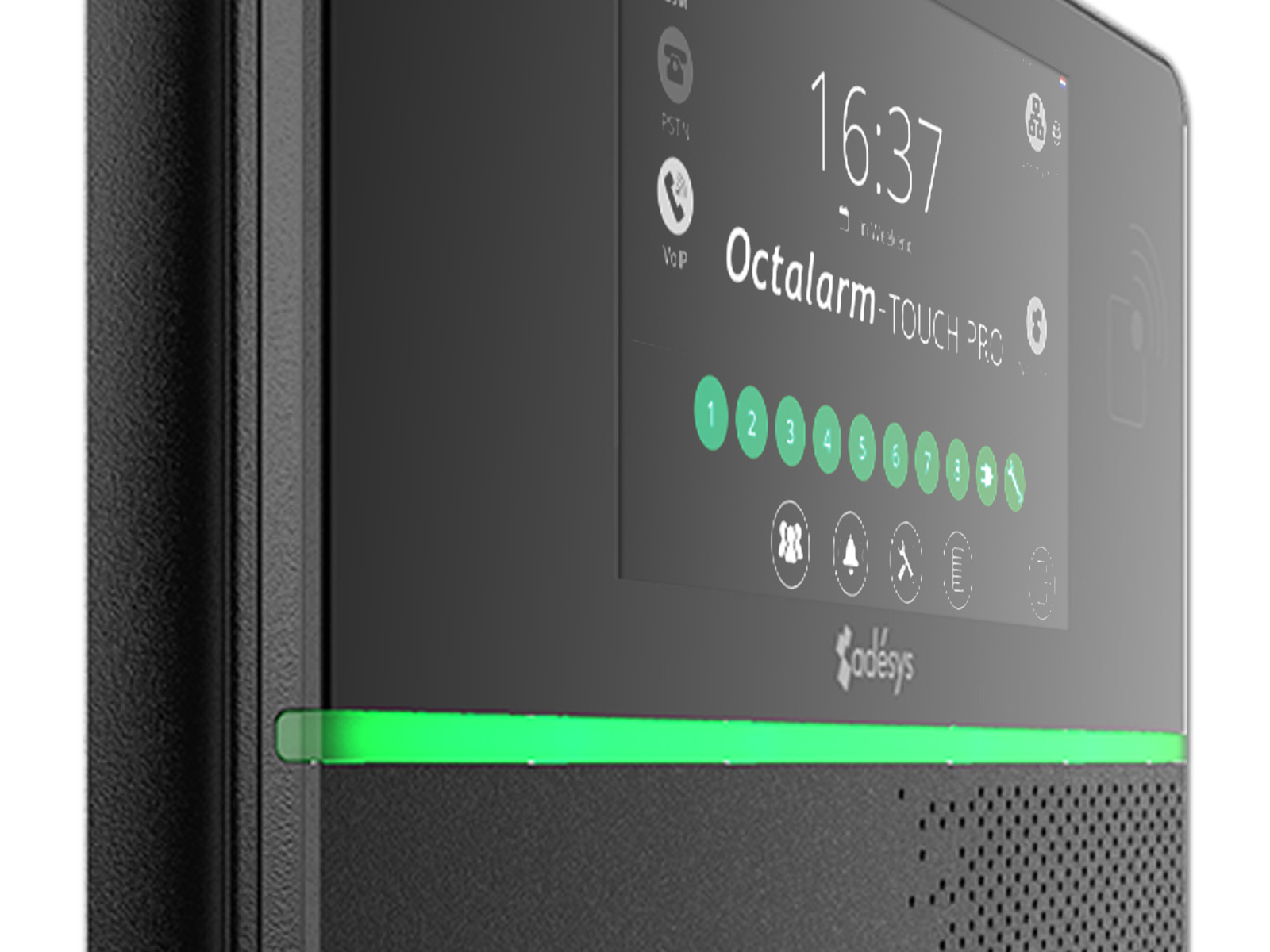

  7. Configuration and daily use extremely intuitive and user-friendly thanks to 7-inch touchscreen
  8. Striking LED status bar for status display
  9. Configuration wizard during commissioning for creating required basic settings
  10. Quick access to contacts, alarms, settings and logbook from home screen
  11. Access with RFID tag and/or personal code
  12. No Firewall issues (VPN) and no manual Email settings (SMTP)

icon-alerts Alert functions

Specific Octalarm-Touch Pro

  1. Expandable with Octalarm Link: additional licence to report large quantities of alarms via network-controlled alarms

Octalarm-Touch Pro & Octalarm-Touch

  1.  Alert types
    1. automatically generated spoken messages
    2. SMS messages
    3. Email message
    4. Pager (via SOAP and APl)
    5. Smartphone app: push alarms
  2. Alert functions
    1. Configurable input delay per input
    2. Reset alarms with personal code
    3. Automatic repeat call up
    4. Day, night and weekend mode with alternative numbers
    5. Local alert via built-in buzzer and LED status bar
    6. System outage safeguards (mains failure and internal malfunctions) and the ‘multiple alarms’ feature
  3. Extension with external module EM-8001 for additional 2x 8 alarm inputs through 2 DIN rail units via I/O bus

icon-system-properties-and-operating-conditions System properties and operating conditions

Specific Octalarm-Touch Pro

  1. Additional (2nd) network connection for technical network (eth1)
  2. Expandable with JSON REST API (Octalarm Link) for control from external process computers (network-controlled alarms)

Octalarm-Touch Pro & Octalarm-Touch

  1. Network connection for public network (eth0)
  2. 8 alarm inputs, 2 relay outputs and 2 open collector outputs for external buzzer and flashing light
  3. Built-in emergency power supply (LiFePO4) for reporting power failure
  4. Compatible with ARA-Pro (ARA 5) | ARA-Pro Next
  5. Wall mounting enclosure (IP42), dimensions 280 x 240 x 42 (W x H x D)
  6. Operating temperature 0°C ... +50°C
  7. Supply voltage 100 - 240VAC
  8. Up-to-date software version: 2.5.3

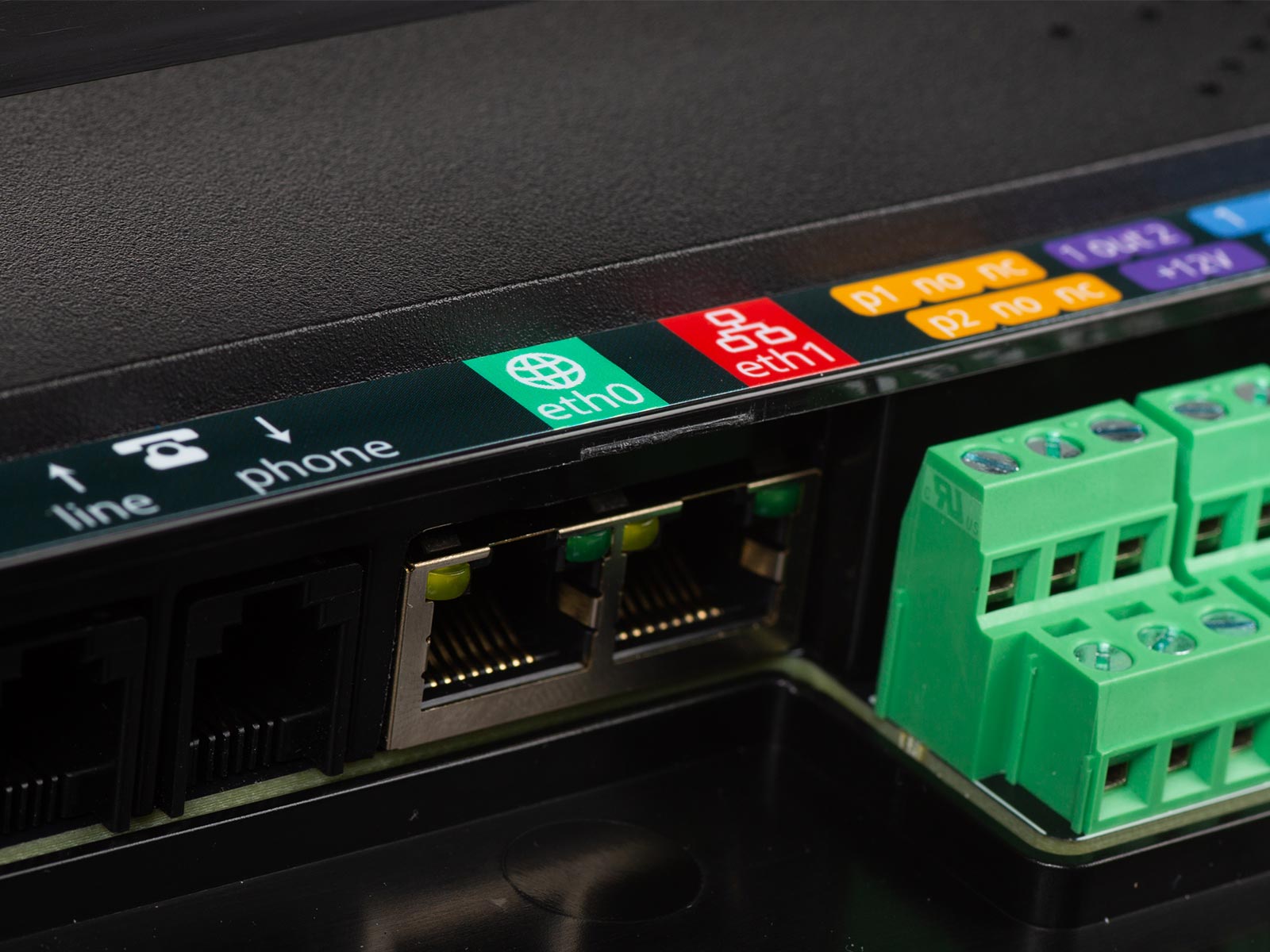

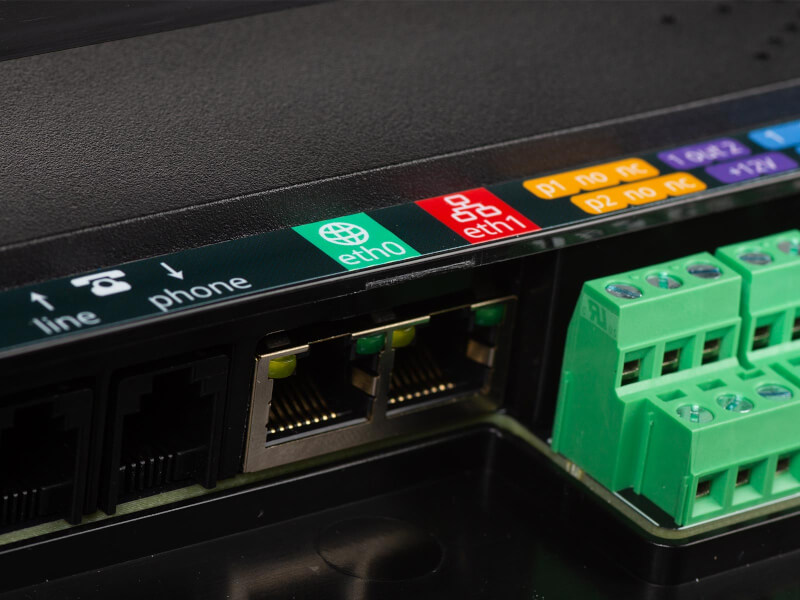

Separate network interfaces for added security

The Octalarm-Touch Pro has two Ethernet ports. This makes it possible to connect the alarm device at the same time completely separately to both a technical network and to a company network/public network.

 Eth0: public network

  1. Connection company network / internet
  2. Communication with Adésys portal (portal.octalarm.com) via Open VPN
    1. Receiving software updates
    2. Controlling app alarms (push alarms)
    3. Controlling pagers via SOAP and API
    4. Remote setting
  3. VoIP calling via SIP protocol (part of Octalarm Connect)
  4. IP alarms within the network in combination with an ARA-Pro report bank

 Eth1: technical network

  1. Connection to technical network
  2. Network controlled alarm via Octalarm Link (JSON REST API).
  3. IP alarms within the network in combination with an ARA-Pro alarm bank.

How to optimally use your Octalarm-Touch Pro

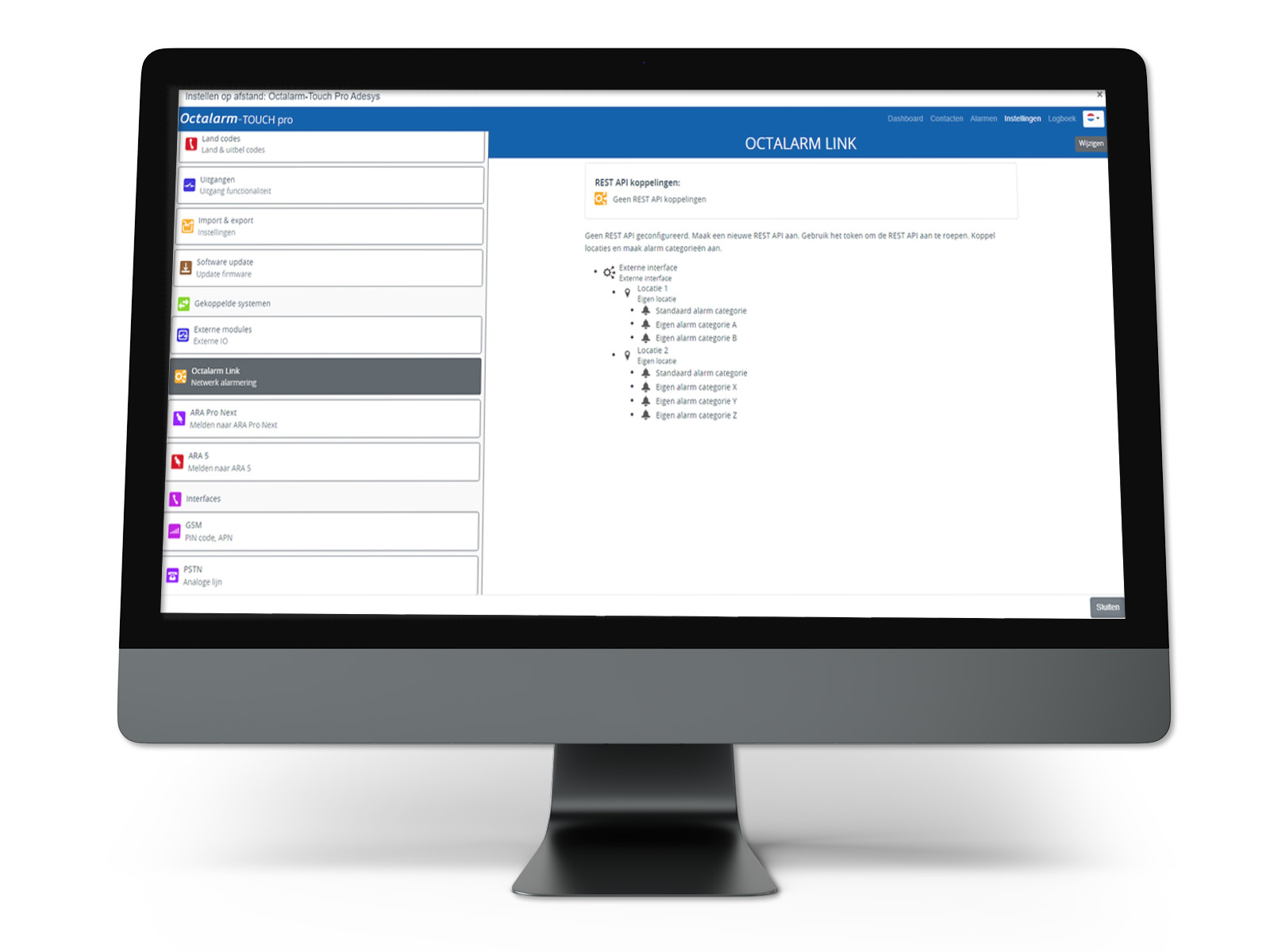

Create a free account at portal.octalarm.com

Worldwide access to current alarm status and remote settings and management from your computer (possible only locally via IP address). More info portal.octalarm.com

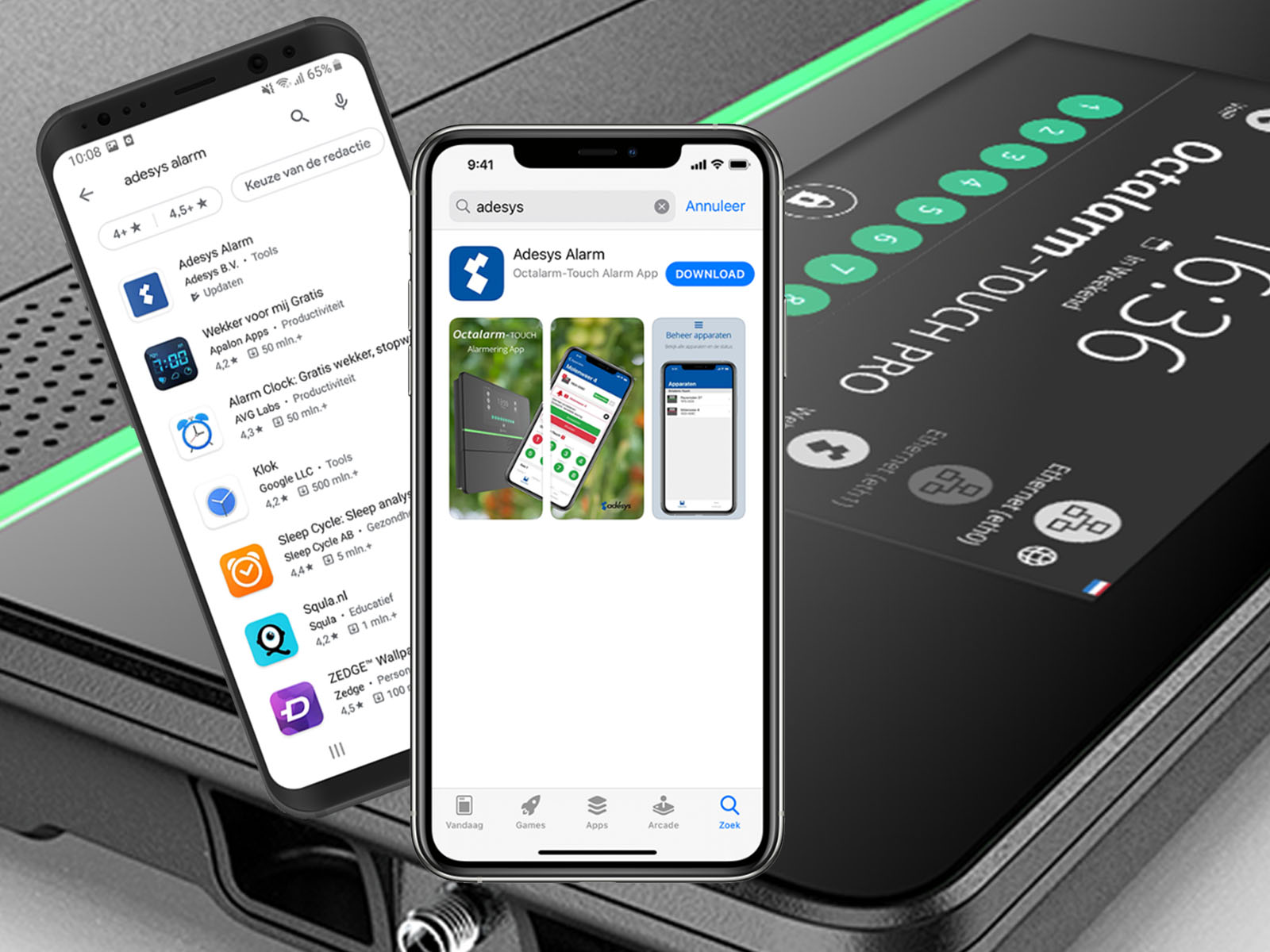

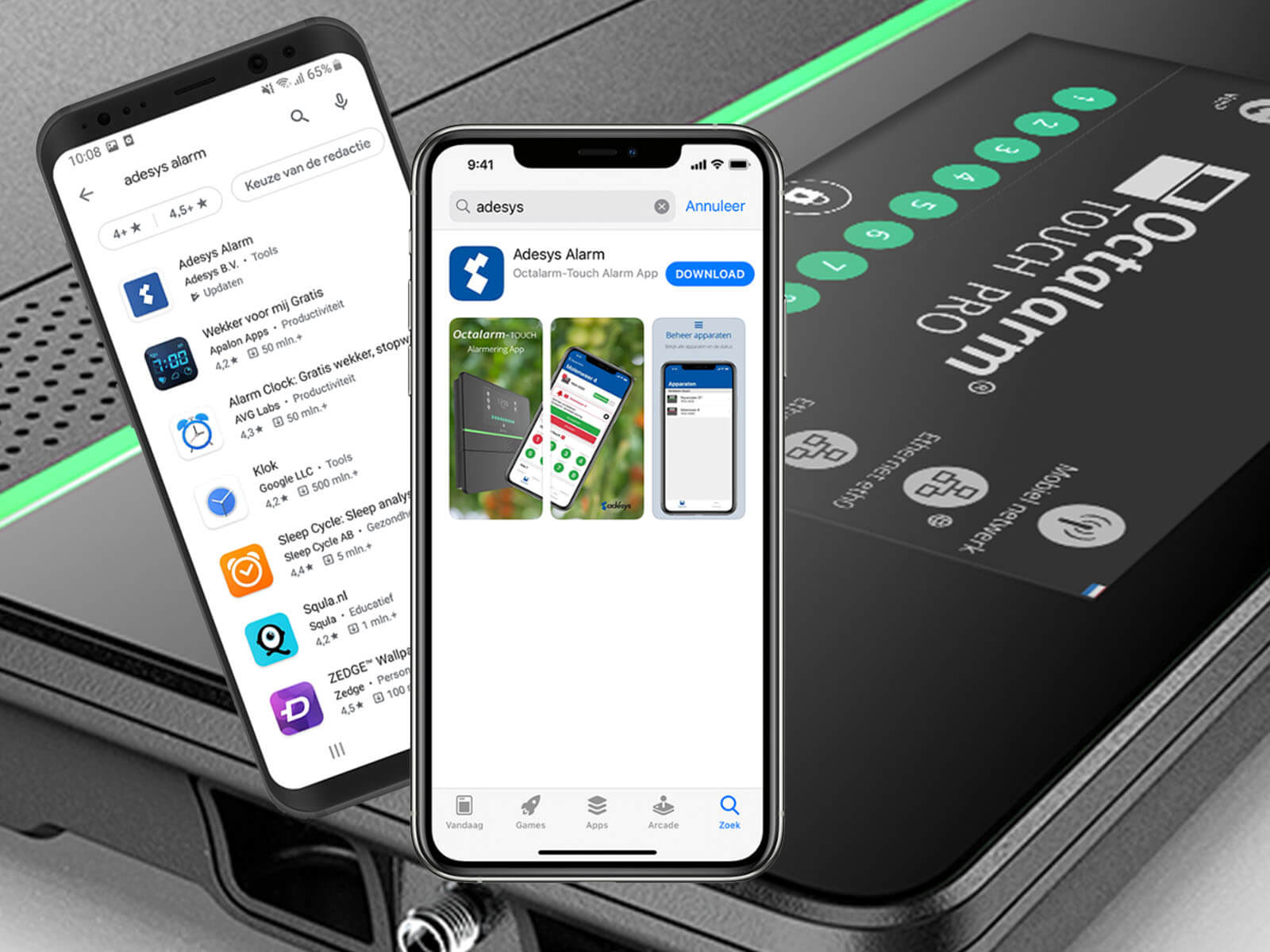

Download the free ‘Adesys Alarm’ app

Access to your alarm dialler literally from your pocket and alarms always immediately to your attention, even if your phone is on silent mode (push alerts). A portal.octalarm.com account is required to use the app. Touch software 2.2.0 or higher is required for alarm notifications. More info Adesys Alarm app

Activate Octalarm Connect

Direct possibility to call out at low, fixed costs per month via GSM and/or VoIP. More info Octalarm Connect



icon duty schedule

Lots of changing shifts? Use the duty schedule module

Additional licence for setting alternating fault shifts for a longer period. More info duty schedule module

  icon octalarm link

Linking process computers? Octalarm Link makes it possible

Extended licence designed for reporting vast amounts of alerts through network-controlled alarms. More info Octalarm Link

Request quotation Octalarm-Touch Pro

It is only possible for companies based in the Netherlands to purchase our products online. You can request an online quote.

The Octalarm-Touch Pro is a further development of the basic Octalarm-Touch. In addition to safe and reliable alarms via today's (strongly changed) digital telephone networks, the Octalarm-Touch Pro has an extra Ethernet port and is expandable with the Adésys standard 'Octalarm Link' (JSON REST API) for network controlled alarms.

More information on the advantages of a separate network interface is explained above on this page.

Additional products, services and accessories

Octalarm Link

REST API (JSON) for network-controlled alarms: variable number of configurable interfaces, locations and categories.

Duty schedule module

Additional licence for setting alternating fault shifts for a longer period.

The portal: portal.octalarm.com

The free portal for Octalarm alarm diallers. Enables global remote setting and management.

Adesys Alarm app

Free alarm management app for alarm notifications, alarm acceptance, management and configuration of detectors and access to the status of critical processes directly on your smartphone. Suitable for Octalarm alarm diallers.

Octalarm Connect

Service for calling at low, fixed costs per month via GSM and/or VoIP. Suitable for Octalarm alarm diallers.

EM-8001

The Octalarm-Touch Pro is available in 1 model with standard 8 inputs. With the external expansion module EM-8001, the dialler can be expanded to 16 and even 24 inputs via I/O bus (RS485).

Touch IP65

The Octalarm-Touch Pro has a protection class of IP42. The alarm dialler is suitable for installation against a wall in a clean room where no strong pollution or splash water can occur. For less clean rooms and in places where there is a risk of splashing water, Adésys supplies a sealed cabinet with an IP65 protection degree, the Touch IP65.
The Touch IP65 is a standard IP65 cabinet that has been modified by us with a mounting rail and supplied cover plate (and associated screws). This allows you, where necessary, to install the Octalarm-Touch neatly finished quickly and easily in a protected environment.

Article number Description Price
Octalarm-Touch Pro redundant alarm dialler with 8 alarm inputs, 2 switchable relay outputs, 2 open collector outputs, notification via spoken message, SMS, pager and/or Email via PSTN, VoIP and 4G GSM/UMTS module. Version with 2 ethernet ports and expandable with Octalarm Link (JSON REST API) for network-controlled alarms. (Delivery including antenna on the device and including UTP cable). Suitable for use app Adesys Alarm (free download). € 2.175,00
PRO-IMPL Support in installing and setting up climate computer links, including training of operator(s), per half day (online and telephone training). Highly recommended when starting to link climate computers for the first time. € 435,00
